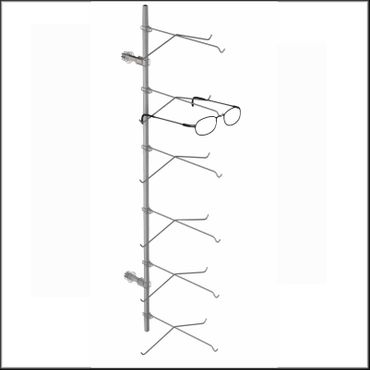

Vertical Optiquattro system with stainless steel frame holder that clips onto square ~0.24" x 0.24" anodized alloy rods. Span between each frame holder is ~ 2-3". Square Alloy rods are available in 5 standard sizes mentioned below or can be customized. Panel mount vertical Optiquattro system can be mounted directly to the back of cabinet or wall using recess pylons. Recess pylons push firmly into accurately machined ~0.63" holes in wood or acrylic. Maximum span between recess pylons is ~4.5 feet. Pylons may start up to ~9.8" from the end of alloy rod. Alloy rods are held ~1.5" out from the wall.



Alloy rods standard sizes:

66A ~ 23.6"

66B ~ 31.5"

66C ~ 39.4"

66D ~ 48.0"

66E ~ 72.0"

For any customized length please contact us @ 1-877-274-9300
